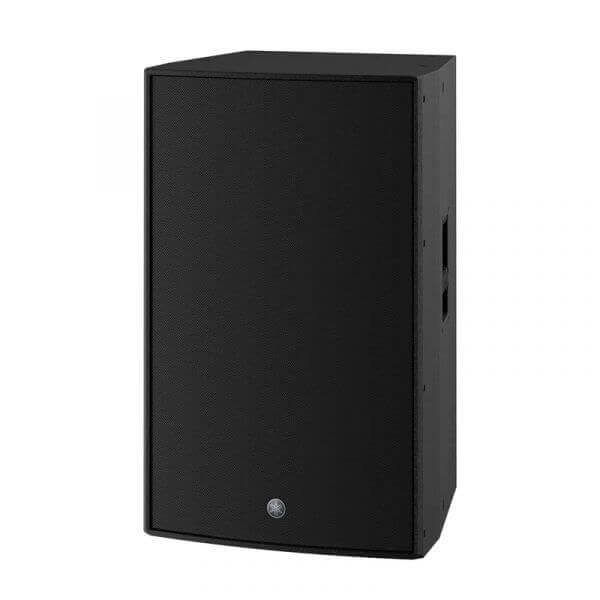

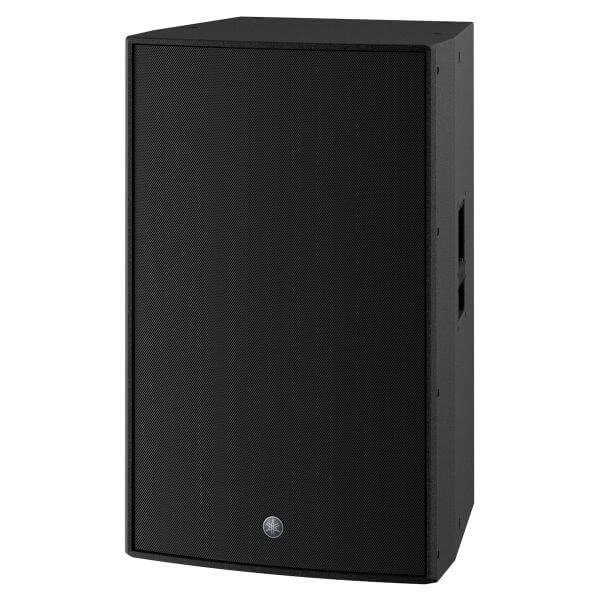

The DZR315-D is a three-way bi-amped powered loudspeaker and is the most powerful model in the DZR Series producing a maximum 143dB SPL with supreme clarity. Best-in-class SPL performance, sophisticated DSP processing, unrivaled low-frequency sound reproduction—the DZR315 delivers on all fronts realizing a truly professional sound delivered with a level of power that belies its compact, lightweight design. Ideal for use in a front of house main PA, it also includes integrated M10 rigging points for suspended applications.
- 3-way powered loudspeaker with a 2” HF, an 8 ” MF and a 15″ LF
- Maximum 143dB SPL and 31Hz-20kHz frequency range is ideal for FOH main PA
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
- Optional speaker cover (SPCVR-DZR315)
- Durable Black or White finish
|
DZR315 / DZR315W |
DXS15XLF / DXS15XLFW |
||
|---|---|---|---|
| Speaker type | 3-way, Bi-amped Powered Speaker, Bass-reflex | Powered Subwoofer, bass-reflex | |
| Frequency range (-10dB) | 31Hz – 20kHz | 33Hz – 150Hz | |
| Coverage area | H75ﾟ x V50ﾟ | – | |
| Components | LF | 15″ Cone, 3″ Voice Coil, Neodymium magnet | 15″ Cone, 4″ Voice Coil, Ferrite magnet |
| MF | 8″ Cone, 1.5″ Voice Coil, Ferrite magnet | – | |
| HF | 2″ Voice Coil, 1″ Throat Compression Driver, Titanium diaphragm, Neodymium magnet | – | |
| Crossover | 700Hz (FIR-X), 2.5kHz (Passive) | – | |
| Sampling frequency rate | Internal | 96kHz and FIR Filter | 96kHz and FIR Filter |
| A/D D/A Converters | 96kHz AD/DA | 96kHz AD/DA | |
| Maximum output level (1m; on axis) | 143dB SPL *1 | 136dB SPL *1 | |
| Power rating | Dynamic | 2000W (LF: 1000W, MF/HF: 1000W) *2 | 1600W *2 |
| Burst (20ms) | 1100W (LF: 1000W, MF/HF: 100W) | 1300W | |
| Continuous | 950W (LF: 850W, MF/HF: 100W) | 1200W | |
| I/O Connectors | Analog I/O | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT | Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1/2: THRU or DSP OUT |
| Others | USB2.0 Host 5V 500mA for USB memory DATA storage/load | USB2.0 Host 5V 500mA for USB memory DATA storage/load | |
| AC | IEC AC inlet x1 (V-Lock) | IEC AC inlet x1 (V-Lock) | |
| Amplifier class | Class-D | Class-D | |
| Cooling | Fan cooling, Variable speeds | Fan cooling, Variable speeds | |
| Power consumption | 45W (Idle), 150W (1/8) | 40W (Idle), 180W (1/8) | |
| Handle | Aluminium die-cast, Side x2 | Aluminium die-cast, Side x2 | |
| Rigging | M10 x16 | – | |
| Dimensions | W | 550 mm (21.6″) | 450 mm (17.7″) |
| H | 897 mm (35.3″) (with rubber feet) | 587 mm (23.1″) (with rubber feet) | |
| D | 520 mm (20.5″) | 600 mm (23.6″) | |
| Net weight | 41.6kg (91.7lbs) | 40.0kg (88.2lbs) | |
| Options | Cover: SPCVR-DZR315 | Cover: SPCVR-DXS15X, Caster: SPW-1 | |
| Others | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | Enclosure Material, Finish, Color: Plywood, Durable Polyurea Painting, Black/White | |
| Floor Monitor Angle | – | – | |
| Pole socket | – | Φ35 mm (depth 80mm), M20 Threaded (depth 25mm) | |
