Pro Sound, Simple Operation

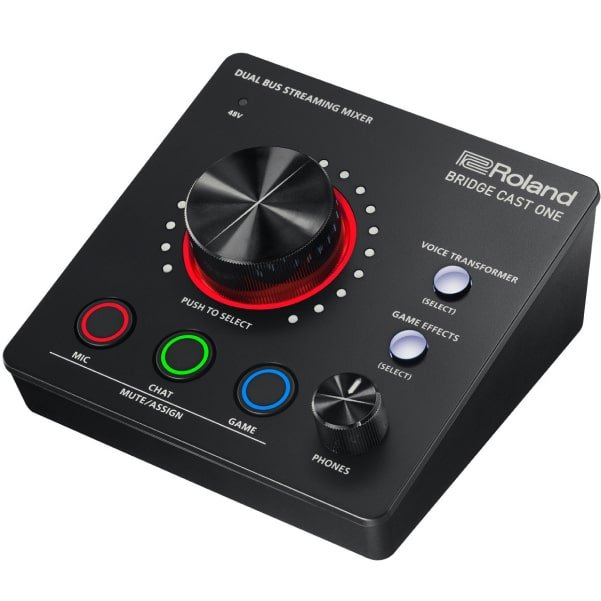

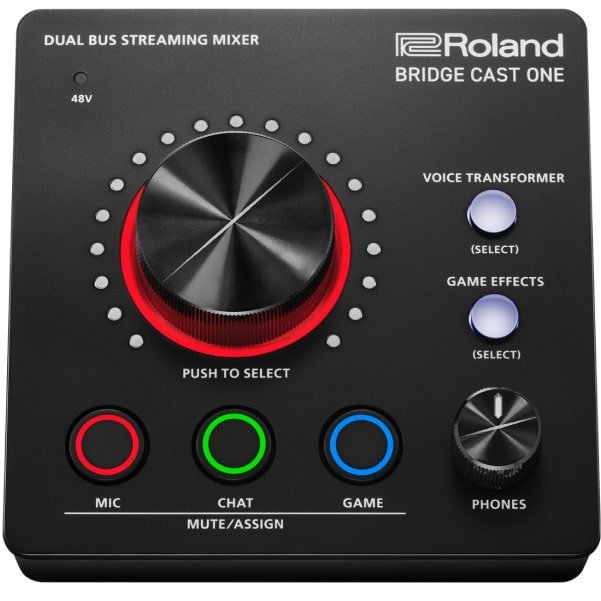

Level up your gaming and streaming sound with BRIDGE CAST ONE, a compact livestreaming audio mixer with hands-on controls. Gain a competitive advantage with powerful features like dual bus mixes, vocal transformer effects, fast-access presets, and support for a broadcast-grade mic and headphones. For even more control, the companion BRIDGE CAST app offers extended audio tools and royalty-free background music and sound effects through BGM CAST on Roland Cloud.
Compact Audio Command Center
With BRIDGE CAST ONE, your online sound is always on par with your gameplay. Backed by 50 years of Roland AV technology, it gives you all the essentials for mixing streams with professional quality. Sleek, multi-function controls provide instant access to vital functions, supported by a deep selection of extended tools in the BRIDGE CAST app.
Pro Microphone Support
A great mic is key if you want to sound like a pro. Chat and broadcast online with crystal-clear audio using a high-quality dynamic or condenser microphone connected to the XLR input. The onboard preamp delivers rich, dynamic sound, eliminating the need for external preamps or costly mic activators. Set up is simple with mic rehearsal mode—just follow the quick-start guide in the app. It’s also possible to connect a headset mic via the mini headphone jack.
Cutting-Edge Sound Tools
The pro audio tools in BRIDGE CAST ONE mean you’ll always keep your audience engaged and your teammates aligned. Quickly manage game sounds and chat audio with a single multi-function knob. Stream clear sound with EQ, compression, noise suppression, and other tools. Add spaciousness with a high-quality reverb effect.
Fine-Tune Game Audio
Enhance game sounds and dominate your competition with customizable Game EQ presets. Call up a custom mix highlighting crucial audio elements, or craft a distinct stream mix to boost your online interaction. A limiter also automatically lowers loud game sounds like gunshots and explosions, reducing ear strain during long sessions.
Virtual Surround Sound
Envelop yourself in your adventures with 5.1 or 7.1 virtual surround sound for headphones and stereo speaker systems, powered by advanced Roland technology. Audio is converted from a PC to virtual surround sound via a USB connection, providing a powerful and immersive sound experience. Use the BRIDGE CAST app to customize the virtual speaker angles and effortlessly shape your sound.
Transform Your Persona
BRIDGE CAST ONE features cutting-edge voice morphing technology derived from Roland’s renowned VT vocal transformer products. Effortlessly morph your voice to alter your age or gender and match your avatar. Or take on the character of a beast or alien.
Customize Your Rig with the BRIDGE CAST App
The companion BRIDGE CAST app is filled with features that seamlessly integrate with the hardware. Create independent audio mixes for you and your audience by balancing the microphone level, team chats, and gameplay sounds. Add background music to enhance your streams. Configure Game EQ presets, set LED colors, and more. And customize the three hardware buttons to execute the commands you need on the fly.
BGM CAST: Curated Music + Sound Effects
With BGM CAST, adding background music and sonic color to streams has never been easier. Available through the BRIDGE CAST app and Roland Cloud, BGM CAST puts a growing selection of royalty-free background music and sound effects at your fingertips. Choose music by mood and genre or create playlists of your favorites for stress-free music management. You can also assign sound effects to the BRIDGE CAST ONE hardware buttons for instant triggering.
A free Roland Account provides 36 background music tracks and 16 sound effects to use at no charge. Signing up for Roland Cloud Core membership through the BRIDGE CAST app unlocks thousands of additional music tracks and hundreds of sound effects, with new selections added each month. Membership also includes powerful tools for modern music creators, including the ZENOLOGY synthesizer, Zenbeats production software, Sound Packs, and more.
Specifications
Input Channels
- MIC
- AUX
- USB CHAT (*1)
- USB GAME (Speakers) (*1)
- USB MUSIC (*1)
- USB SYSTEM (*1)
- USB CONSOLE (Speakers) (*2)
(*1) When USB port is set to “PC”
(*2) When USB port is set to “CONSOLE”
Output Channels
- LINE OUT
- PHONES
- AUX (*3)
- USB MIC (*4)
- USB STREAM (*4)
- USB PERSONAL (*4)
- USB CONSOLE (Microphone) (*5)
(*3) Microphone audio output via CTIA MIC jack
(*4) When USB port is set to “PC”
(*5) When USB port is set to “CONSOLE”
Audio Mixing Bus
- 2 Buses: STREAM MIX, PERSONAL MIX
Sampling Frequency
- Windows: 44.1 kHz, 48 kHz, 96 kHz
- macOS/Other: 48 kHz
Signal Processing
- AD/DA Conversion: 24 bits
- Internal Processing: 32-bit Floating Point
Effects
- MIC: Voice Changer, Noise Suppressor, Compressor, Equalizer, De-esser, Reverb, Low Cut
- CHAT: De-esser, Compressor
- GAME/AUX (*6): Equalizer, Limiter, Virtual Surround
- STREAM: Delay
(*6) Selectable via GAME EFFECTS setting
Audio File Player
- Tracks: 2
- Formats: WAV (Linear PCM, 48 kHz, 16-bit, stereo/mono)
- Max Duration: 5 seconds per track
Input Specifications
- MIC: -85 to -10 dBu (Max: +2 dBu)
- HEADSET MIC: -58.5 to -20.5 dBu (Max: -8.5 dBu)
- AUX: -10 dBu (Max: +2 dBu)
Output Specifications
- LINE OUT: -4 dBu (Max: +8 dBu)
- HEADSET: +1 dBu (Max: +13 dBu)
Connectors
- MIC: XLR type (Phantom power: DC 48 V, 6 mA Max)
- HEADSET: Stereo miniature phone (CTIA, PLUG-IN power)
- AUX: Stereo miniature phone (TRRS)
- LINE OUT: Stereo miniature phone (TRS)
- USB Port: USB Type-C® (Audio/MIDI/HID Supported)
Power
- Power Source: USB bus power (5 V, 900 mA or more required)
- Current Draw: 5 V DC, 900 mA
Operating Systems
- Microsoft Windows 10, Windows 11
- Apple macOS 12 or later
Accessories
- Leaflet “Read Me First”
- USB 2.0 Type-C to Type-C Cable (2 m, 6.5 feet)
Size and Weight
- Width: 111 mm (4.4 inches)
- Depth: 109 mm (4.3 inches)
- Height: 56 mm (2.2 inches)
- Weight: 275 g (9.7 oz)
